Product
Battery enclosure
Heat, because a cell held warm loses capacity first
Open the product →DEMO — fictional range. Local brief only, NOT SENT. No personal data is collected or transmitted.
SOLAR BALANCE OF SYSTEM / FICTIONAL RANGE
The module is the easy part. This is the rest of it.

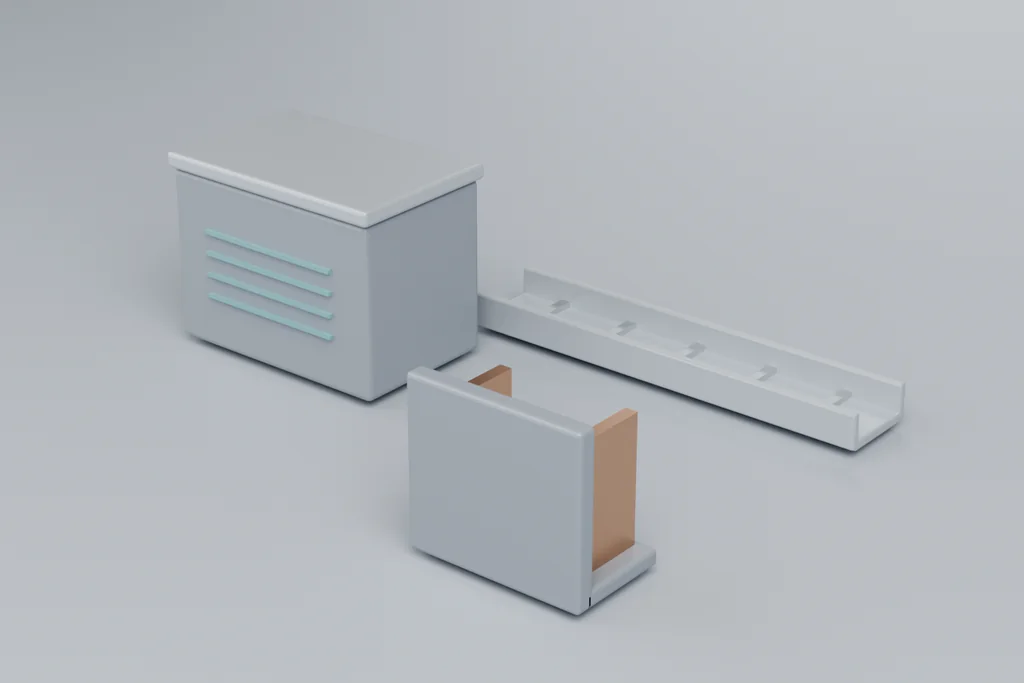

VOLTARRAY is a fictional solar balance-of-system range covering battery enclosures, cable tray and inverter mounting. The site is organised around heat, separation and stand-off: the parts that decide whether a system runs at its rating or quietly below it.
Three parts, three ways a system derates.
Each part in this range is decided by something that does not appear on a load table, and each failure is quiet rather than sudden.
Product
Cable tray
Separation, because DC and AC runs have to be kept apart
Open the product →Product
Inverter bracket
Stand-off, because an inverter flat to a wall cannot shed heat
Open the product →What a datasheet cannot decide.
Four things that belong to the installation rather than to the component.
- Where the heat goes
- Because an enclosure in a plant room and one in the sun are different problems
- What runs alongside
- Because separation is a property of the run, not of the tray
- What else the bracket carries
- Because cable and conduit are load the drawing may not show
- Who maintains it
- Because a filter nobody changes is a filter that is not there
