Component
Circular connector

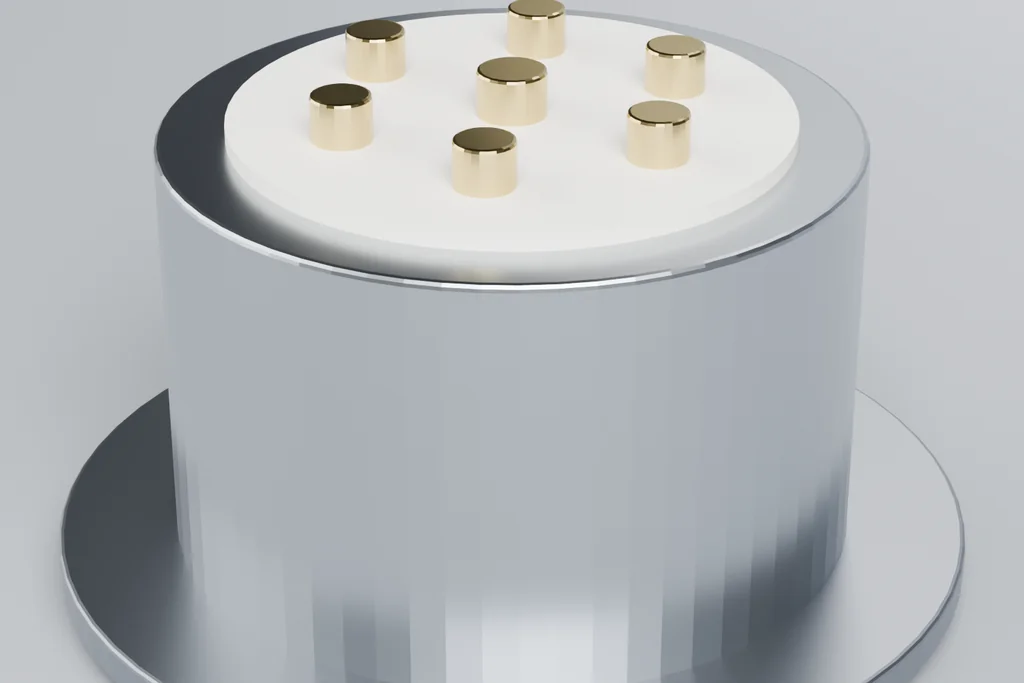

A metal-shell circular connector with seven contacts on a ring. The shell is the keying and the seal, so the contact layout is the easy part.
Open the component →
Component
Terminal block

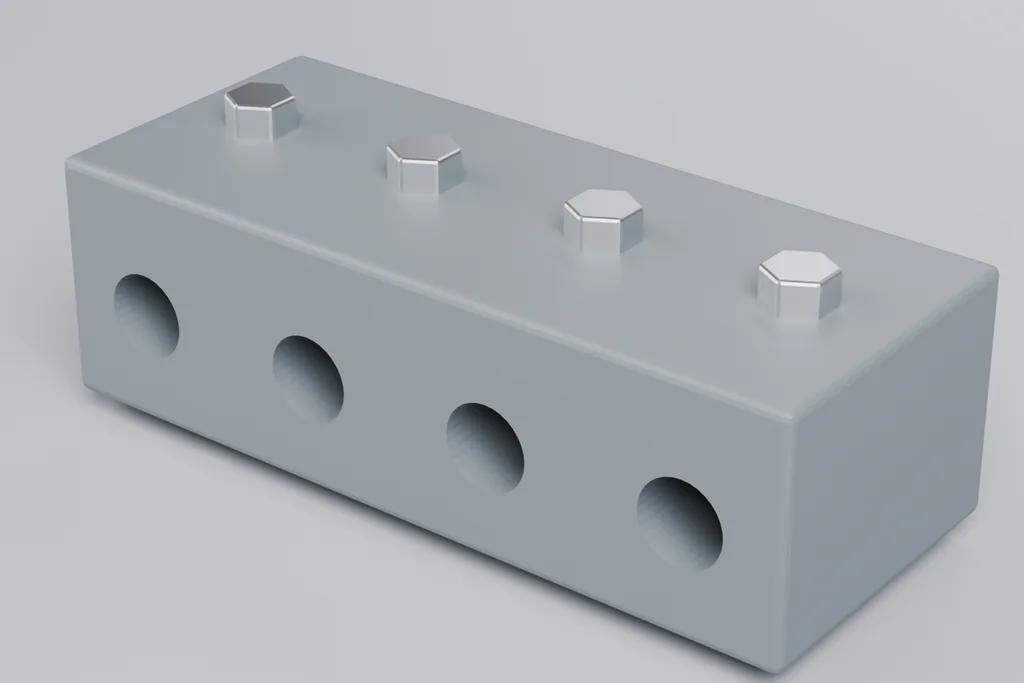

A four-way block with screw terminals and a wire entry per way. The pitch is the specification, because it sets the wire size the block will take.
Open the component →
Component
Crimp contact
A crimped contact with a mating pin, a retention shoulder and a barrel. The crimp is the connection: everything else only holds it in place.
Open the component →How the range is organised.
By the joint rather than by the shell. A circular connector is decided by its keying, a block by its pitch, a contact by its crimp.
- Shelled connectors
- Decided by keying and sealing, because that is what the interface is
- Blocks
- Decided by pitch and divider, because that is what holds the rating
- Contacts
- Decided by the crimp and the plating, because that is the connection
- Accessories
- Decided by the shell, because they have to fit it
