RINSE / ROUTE · THE RANGE FOLLOWS THE RETURN
Make room for the return.
Explore the receiving, washing and clean-side handovers before selecting the equipment range.
Plan the return journey ↓Explore the range ↗
THE RETURN JOURNEY
Three handovers. One conversation.
Change the imagined receiving direction and watch the collection follow it. The layout is a discussion sketch, not an approved washing process.
Wash interface
Hood washer concept
Review the interface ↗
Clean handover
Clean-side rack concept
Review the interface ↗Left → receiving → wash interface → clean handover. Compatibility and operating evidence remain open.
Keep this route in a local brief ↗A CONNECTED COLLECTION
Look at the seams between units.
Wash station
Hood washer concept

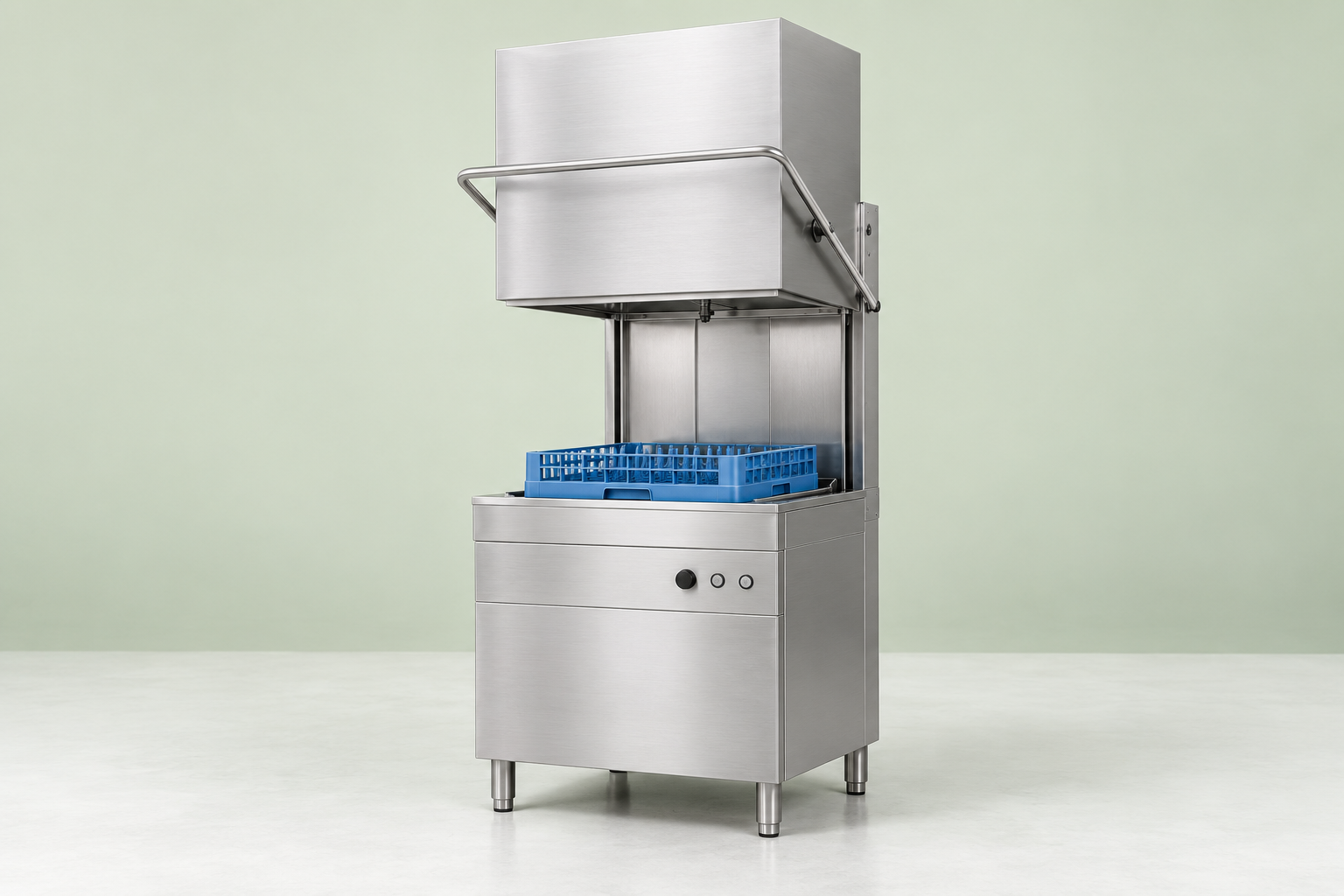

A raised-hood washer concept for discussing rack access and the receiving-to-clean-side handover.
DEMO 700 × 800 × 1500 mm
Receiving
Receiving bench concept

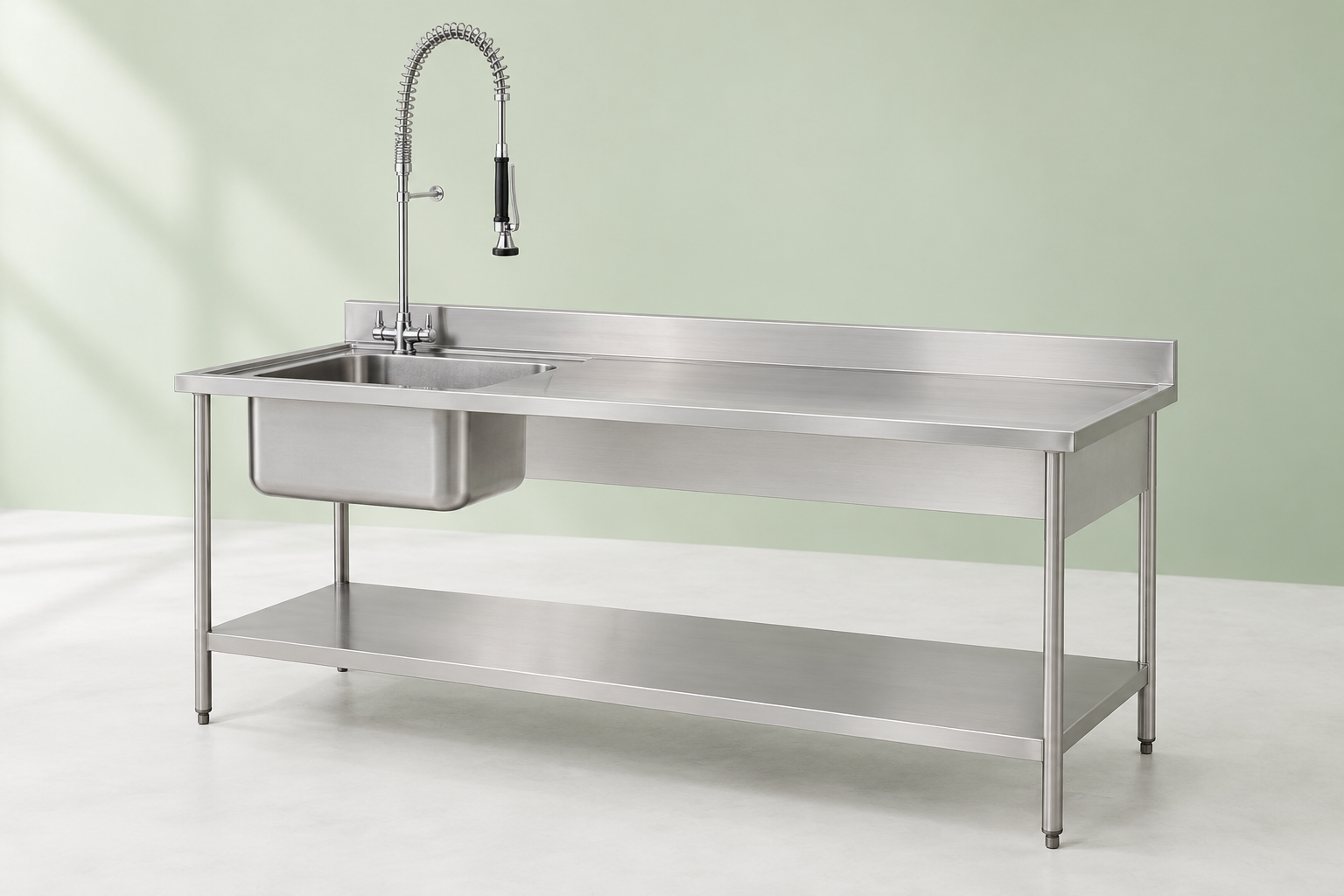

A receiving-bench concept that makes the basin, approach and handover to the next station visible.
DEMO 1200 × 700 × 900 mm
Clean handover
Clean-side rack concept

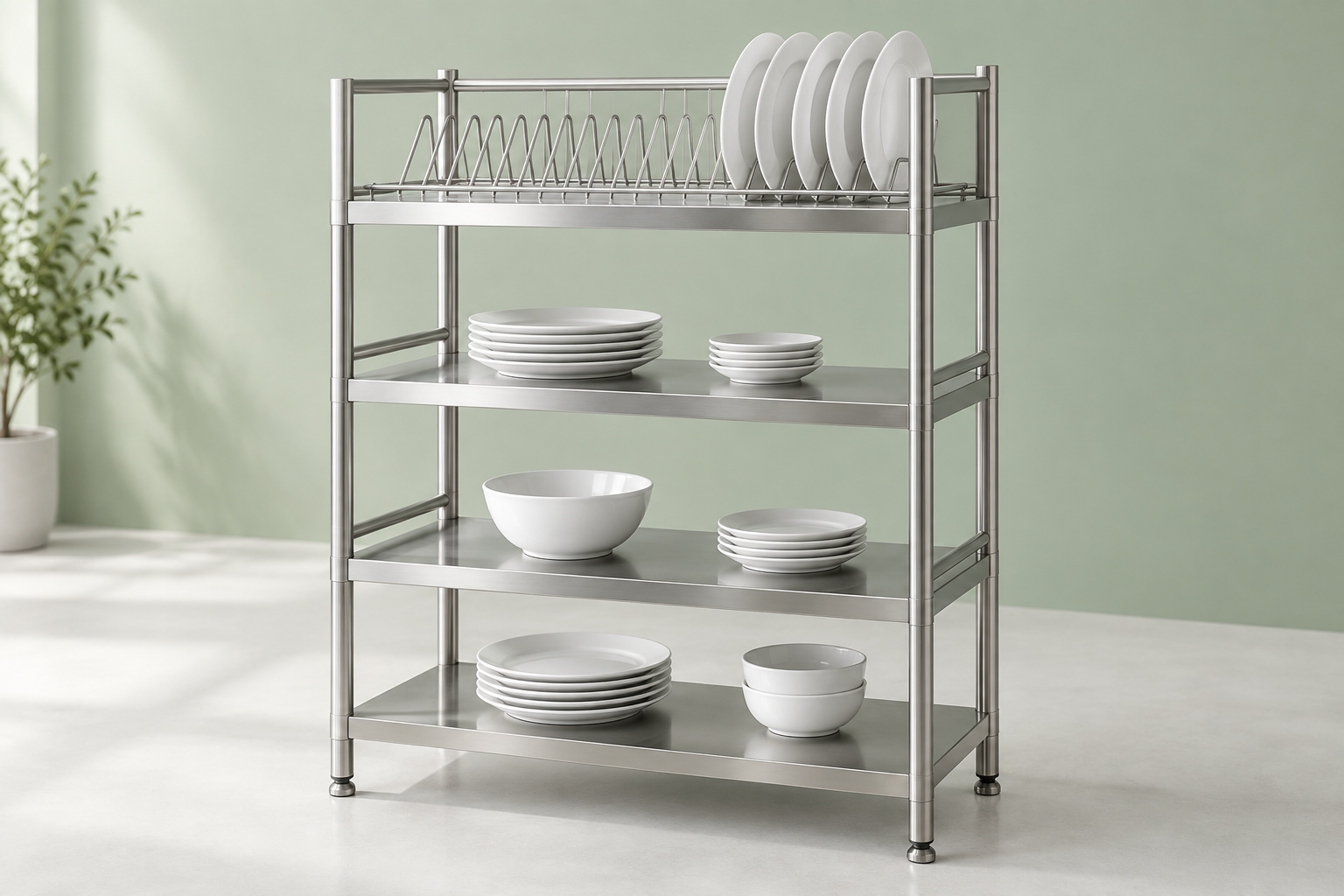

An open rack concept for discussing the next handover, storage interface and access after washing.
DEMO 1000 × 600 × 1500 mm
Your concept comparison
Compare fictional reference envelopes. Real compatibility and performance require actual model documents.
Select concepts to compare.
Useful range. Clear responsibilities.
A route, then a range
Map the return, handling and clean-side handover with the people who use the space.
Interfaces, then units
List the actual rack, bench, machine and receiving interfaces that need to be checked together.
A reviewed range
Keep model documents and project responsibilities with the selected collection. No illustrated unit is an approved washing process.
