Storage

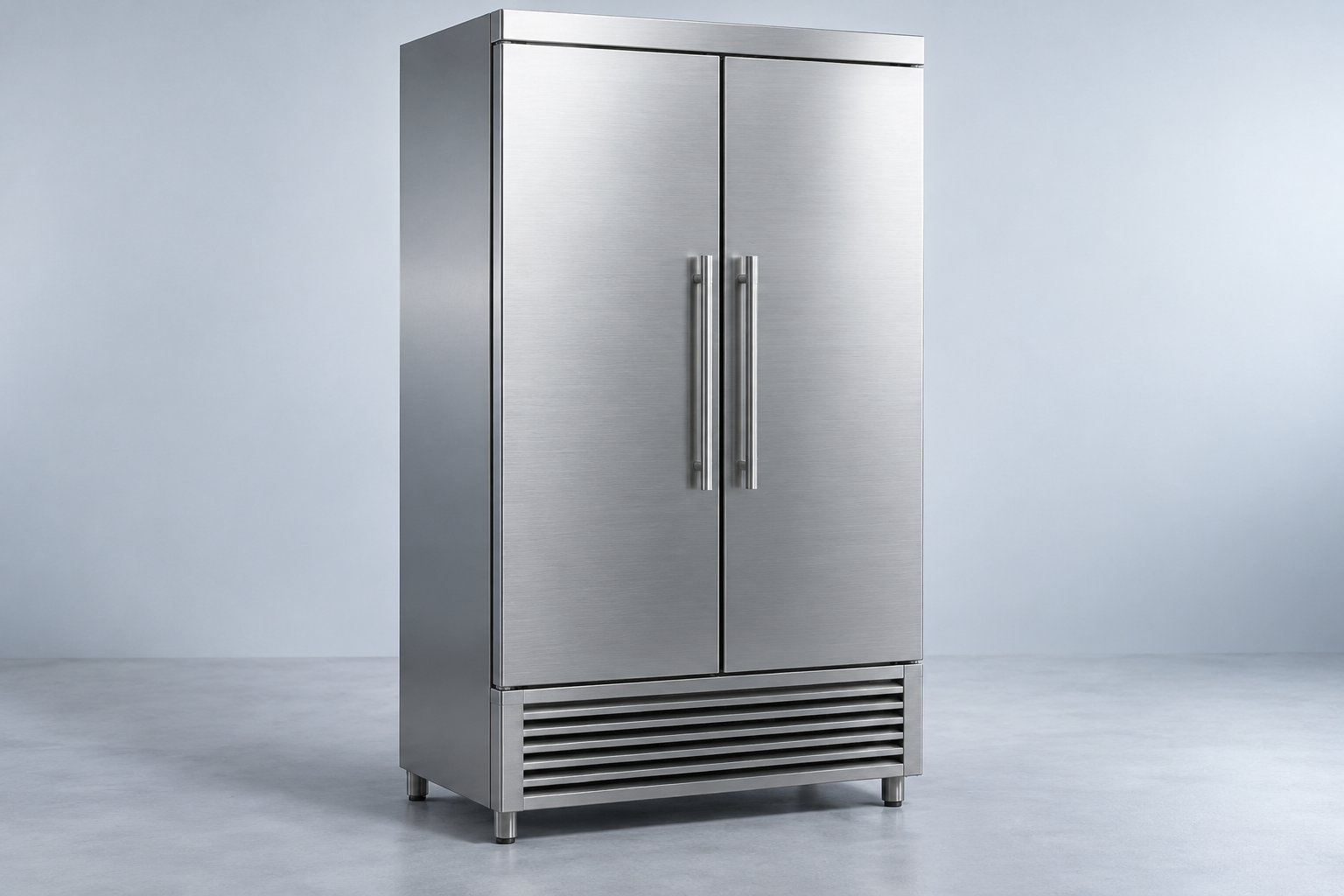

Upright cabinet concept
A vertical cabinet concept that keeps loading, door approach and delivery height visible in the buying conversation.
DEMO 1200 × 800 × 2050 mm
NORTHLINE / PROJECT DESK
Specify the cold side.
Bring storage tasks, reference envelopes and installation questions into one project workbench.
Open the drawing workbench ↓REFERENCE EQUIPMENT SCHEDULE
- 01 / Storage
- Loading & access
- 02 / Preparation
- Surface & interface
- 03 / Process
- Evidence & validation
Three fictional concepts / no rated performance
REFERENCE DRAWING
Keep the envelope in view.
Choose a concept and a fictional bay width. The sketch compares outer dimensions; positive remaining space does not approve fit or installation.
CANDIDATE ENVELOPES
Compare the task. Keep the documents.
Preparation

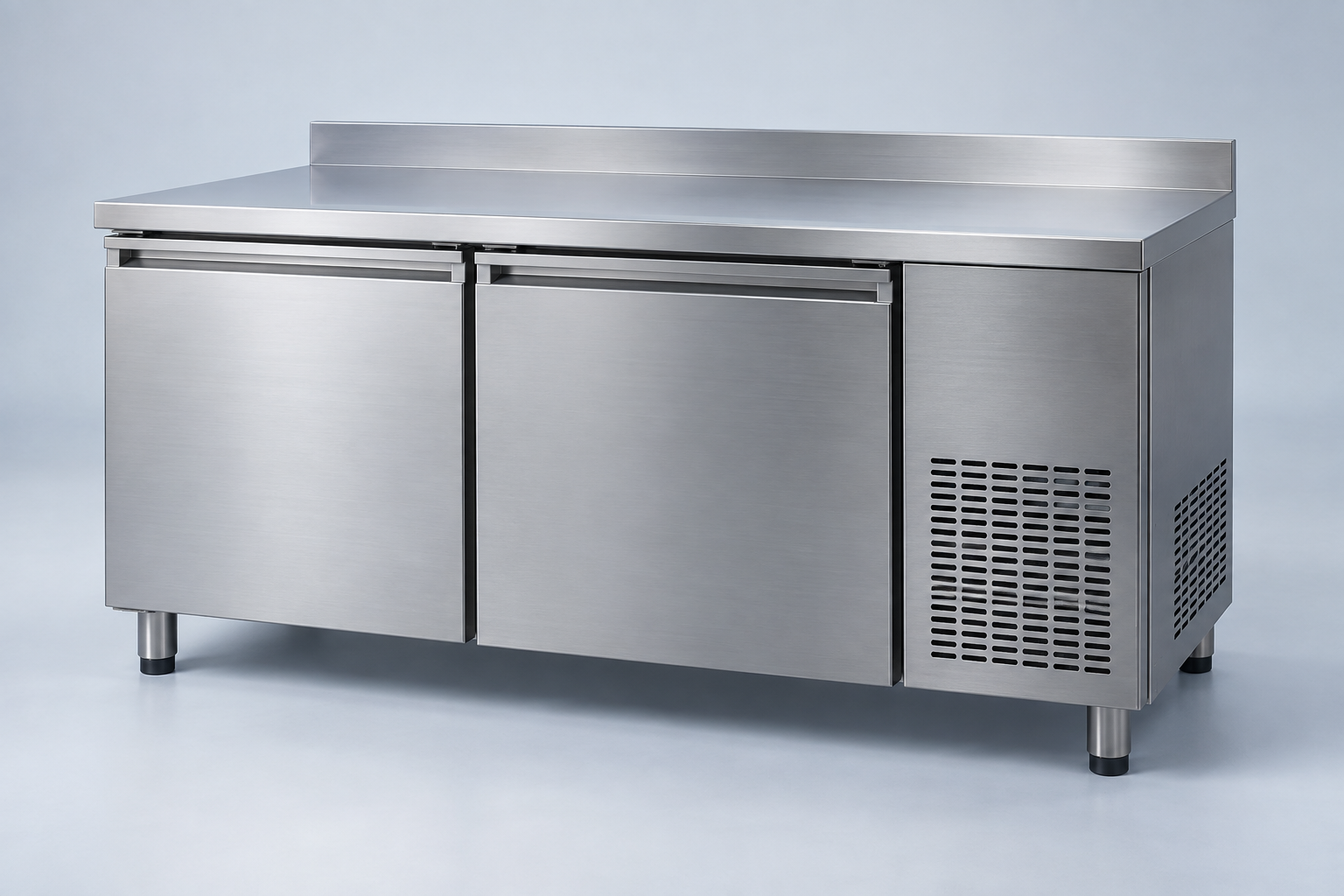

Preparation counter concept
A counter concept that connects the working surface to refrigerated-access and station-planning questions.
DEMO 1400 × 700 × 900 mm
Process
Compact process cabinet concept
A compact front-access concept for discussing a defined process step, its loading interface and required evidence.
DEMO 800 × 850 × 1050 mm
Your concept comparison
Compare fictional reference envelopes. Real compatibility and performance require actual model documents.
Select concepts to compare.
From concept to coordinated review.
Task-led specification
Describe what the actual equipment will do and the operating pattern. Storage, preparation and process equipment need distinct questions.
Drawing-led coordination
Keep the equipment envelope, access route and actual service clearances with the current project drawing.
Document-led decisions
Ask for relevant model and market documentation. Treat unanswered environmental, utility and operating questions as open items.
YOUR NEXT DRAWING CONVERSATION
Bring the drawing and the open questions.
A fictional brief can show how requirements stay with the selected concept. It is downloaded locally and never sent.
Prepare a local brief ↗Browse reference documents
